叉車、集裝箱堆高車，料斗提升機，盾構機，磁力橫移機，鋼鐵冶金設備等

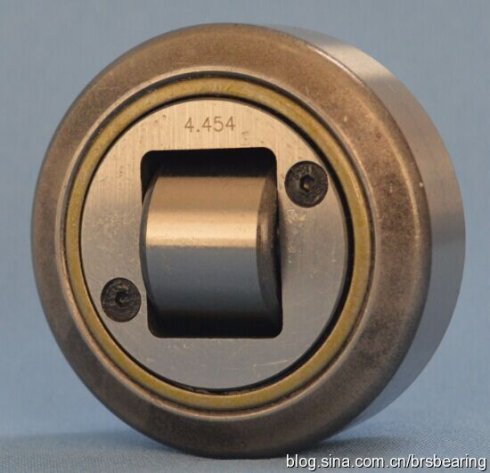

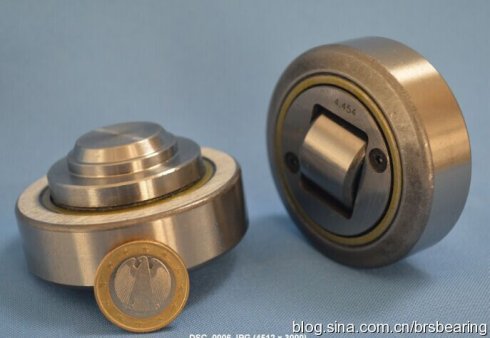

Winkel組合軸承4.454-4.463可調軸向軸承型號
| Model |
Dimensions |
Wt. |
C | Co | Ca | Coa | ||||||||
| A | B | d | D | h | H | r | S | T | kN | kN | kN | kN | ||
| 4.454 |
4-5.5 |
20 | 30 | 62.5 |
30.5-32 |
37.5-39 |
3 | 20 | 42 | 0.53 | 31 | 35.5 | 11 | 11 |
| 4.455 |
4-5.5 |
23 | 35 | 70.1 |
36-37.5 |
44-45.5 |
4 | 20 | 48 | 0.8 | 45.5 | 51 | 11 | 11 |
| 4.456 |
3.5-5 |
23 | 40 | 78 |
37-38.5 |
48-49.5 |
4 | 26 | 54 | 1 | 48 | 56.8 | 18 | 18 |
| 4.457 |
3.5-5 |
23 | 40 | 78.3 |
29-30.5 |
40-41.5 |
4 | 26 | 54 | 0.87 | 48 | 56.8 | 18 | 18 |
| 4.458 |
4-5.5 |
30 | 45 | 88.4 |
44-45.5 |
57-58.5 |
4 | 26 | 59 | 1.62 | 68 | 72 | 23 | 23 |
| 4.459 |
4.5-6.5 |
26 | 50 | 101.6 |
33-35 |
46-48 |
3 | 30 | 69 | 1.74 | 73 | 82 | 25 | 27 |
| 4.460 |
4-6 |
31 | 55 | 108.5 |
40-42 |
54-56 |
5 | 30 | 69 | 2.27 | 81 | 95 | 31 | 36 |
| 4.461 |
4-6 |
31 | 60 | 107.7 |
55-57 |
69-71 |
5 | 30 | 69 | 2.82 | 81 | 95 | 31 | 36 |
| 4.462 |
5-9 |
37 | 60 | 123 |
56-60 |
72.3-76.3 |
5 | 34 | 80 | 3.6 | 110 | 132 | 43 | 50 |
| 4.463 |
6-10 |
45 | 60 | 149.4 |
58.5-62.5 |
78.5-82.5 |
3 | 34 | 108 | 6.3 | 151 | 192 | 68 | 71 |
| 4.085 |
6.5-9.5 |
57.3 | 100 | 180 |
76.3-79.3 |
95.7-98.7 |
3 | 60 | 124 | 11.5 | ||||
